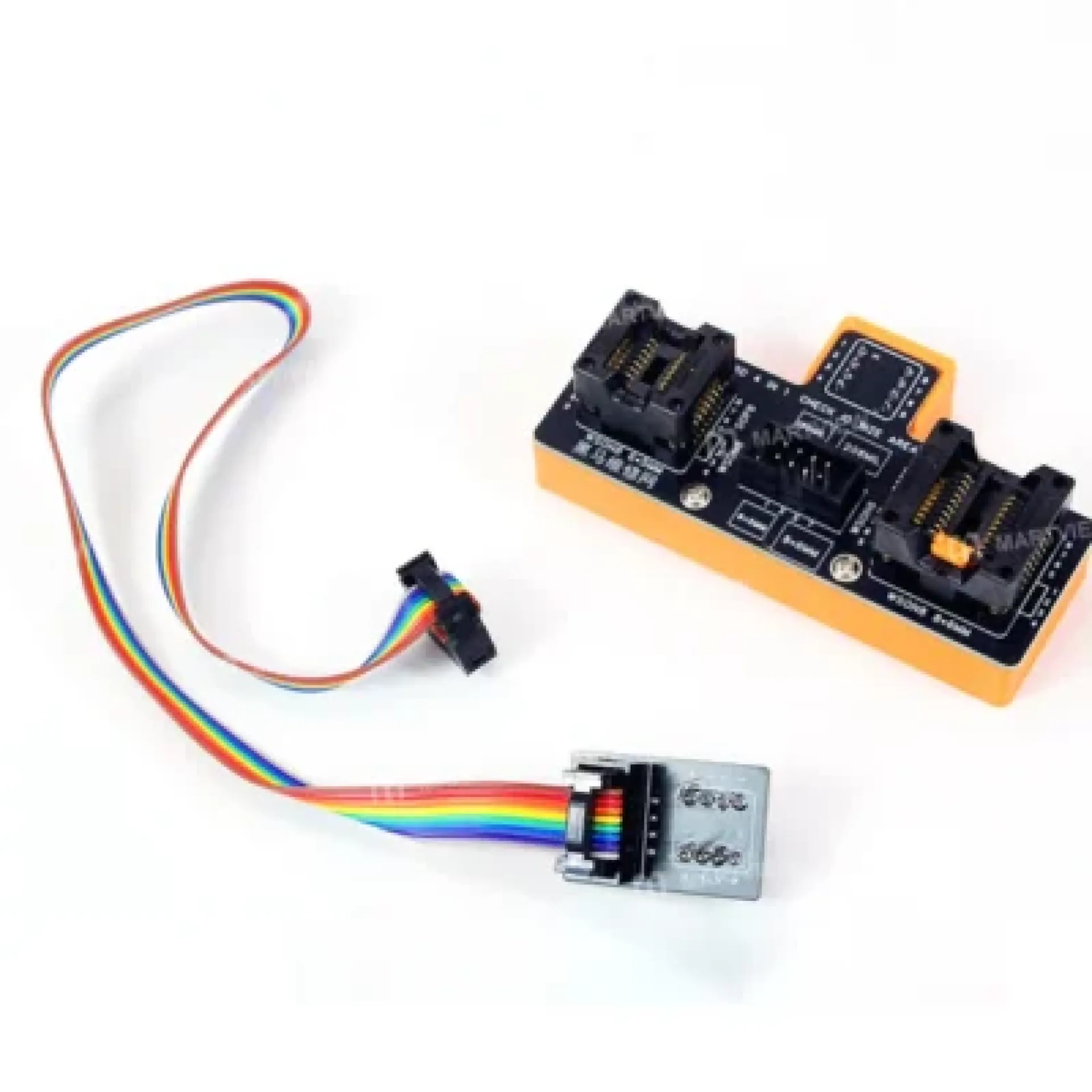

SOP8 / WSON8 / QDFN8 BIOS Burn-in Socket for C341 / RT809H / RT809F / TL886

The SOP8 / WSON8 / QDFN8 BIOS Burn-in Socket is a 4-in-1 adapter built for technicians who need to program, test, or recover small surface-mount BIOS and flash chips without soldering. Compatible with the C341, RT809H, RT809F, and TL886 (TL866) series universal programmers, this socket bridges the gap between a programmer's standard interface and the compact SOP8, WSON8, and QDFN8 chip packages found on modern motherboards, laptops, and embedded devices.

Rather than requiring a separate adapter for every chip size, this burn-in socket covers four common footprints in one unit: SOP-8 at 150mil and 208mil body widths, plus WSON8 in both 6×5mm narrow-body and 8×6mm wide-body configurations. Both the SOP8 and WSON8 packages use a 1.27mm pin pitch, which the socket's clamp mechanism is designed to seat securely, giving a stable electrical connection during read, write, and verify operations.

For anyone working on BIOS recovery, chip-level laptop repair, or router and IoT firmware flashing, this kind of consolidated adapter removes a real bottleneck. Instead of stopping mid-job to source a specific WSON8 or QDFN8 clip, a single burn-in socket handles the most frequently encountered small SMD memory packages, which keeps a repair bench organized and cuts down on tool clutter.

The socket's clamp-style design is meant for repeated insertion without damaging chip leads, which matters when a technician is testing multiple boards or verifying a chip before committing to a full firmware write. Because it works across several programmer brands rather than being locked to one device, it's also a practical pick for shops that run more than one programmer model side by side.

Typical buyers include laptop and motherboard repair technicians, BIOS chip recovery specialists, and hobbyists working with EEPROM or flash memory salvaged from consumer electronics. Choosing a multi-package socket like this one over single-purpose adapters saves both money and bench space, while still covering the SOP8, WSON8, and QDFN8 packages most commonly seen in BIOS and firmware work.

Features

• 4-in-1 socket covering SOP8, WSON8, and QDFN8 package types

• Compatible with C341, RT809H, RT809F, and TL886 (TL866) series programmers

• Supports SOP-8 in both 150mil and 208mil body sizes

• Supports WSON8 in 6×5mm (narrow body) and 8×6mm (wide body) sizes

• 1.27mm pin pitch clamp design for secure chip contact

• Reusable socket built for repeated programming and testing cycles

• Reduces the need for multiple single-package adapters on the bench

• Works across several universal programmer brands, not just one device

Specifications

• Supported Packages: SOP8 (150mil, 208mil), WSON8 (6×5mm, 8×6mm), QDFN8

• Pin Pitch: 1.27mm (SOP8 and WSON8)

• Compatible Programmers: C341, RT809H, RT809F, TL886 (TL866) series

• Socket Type: Clamp-style burn-in / test socket

Applications

• BIOS chip reading, writing, and recovery

• Laptop and motherboard chip-level repair

• Router and modem firmware flash recovery

• EEPROM and small flash chip testing before installation

• Recovering data from SOP8/WSON8/QDFN8 memory chips

• Multi-programmer repair bench setups

• General SMD chip diagnostics without desoldering
