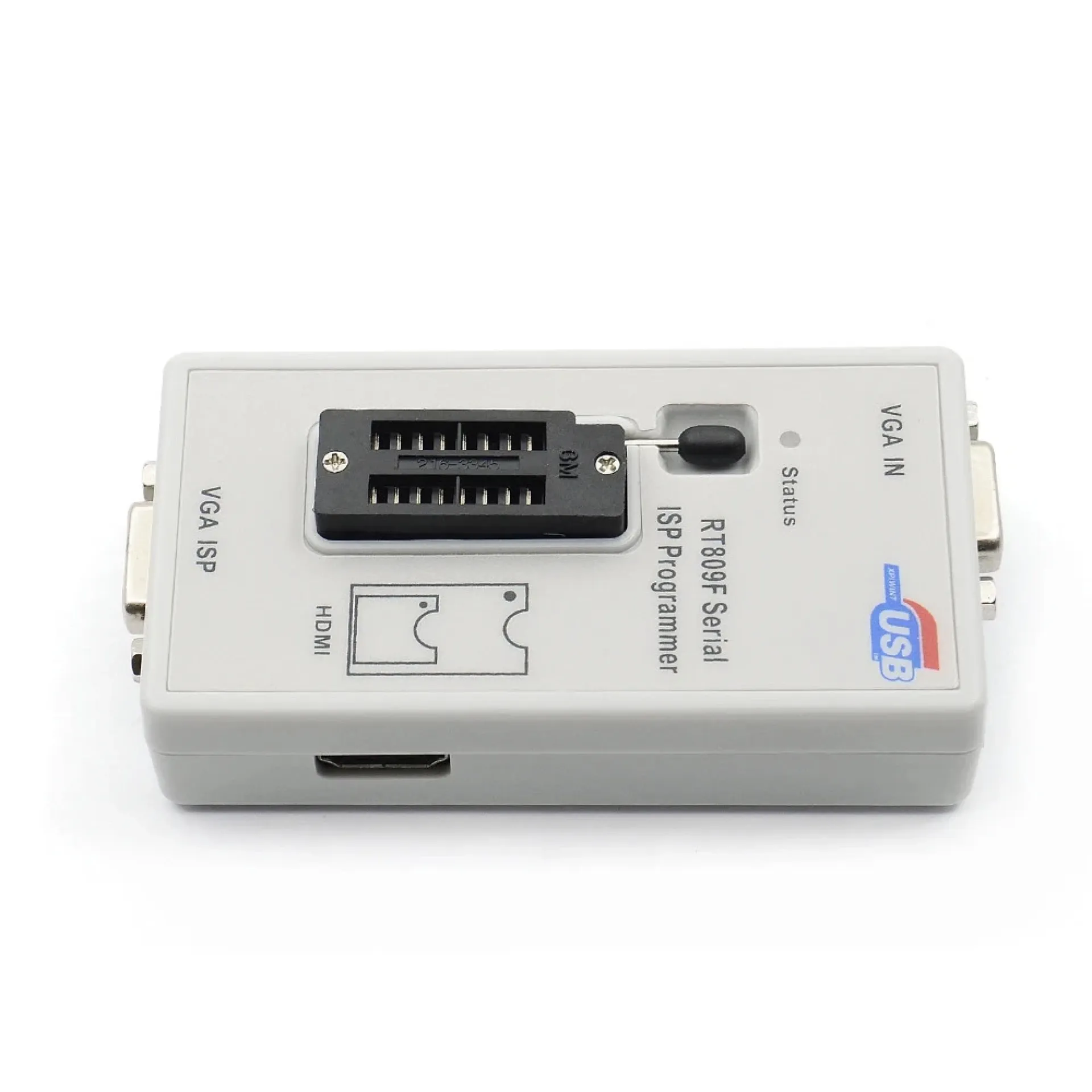

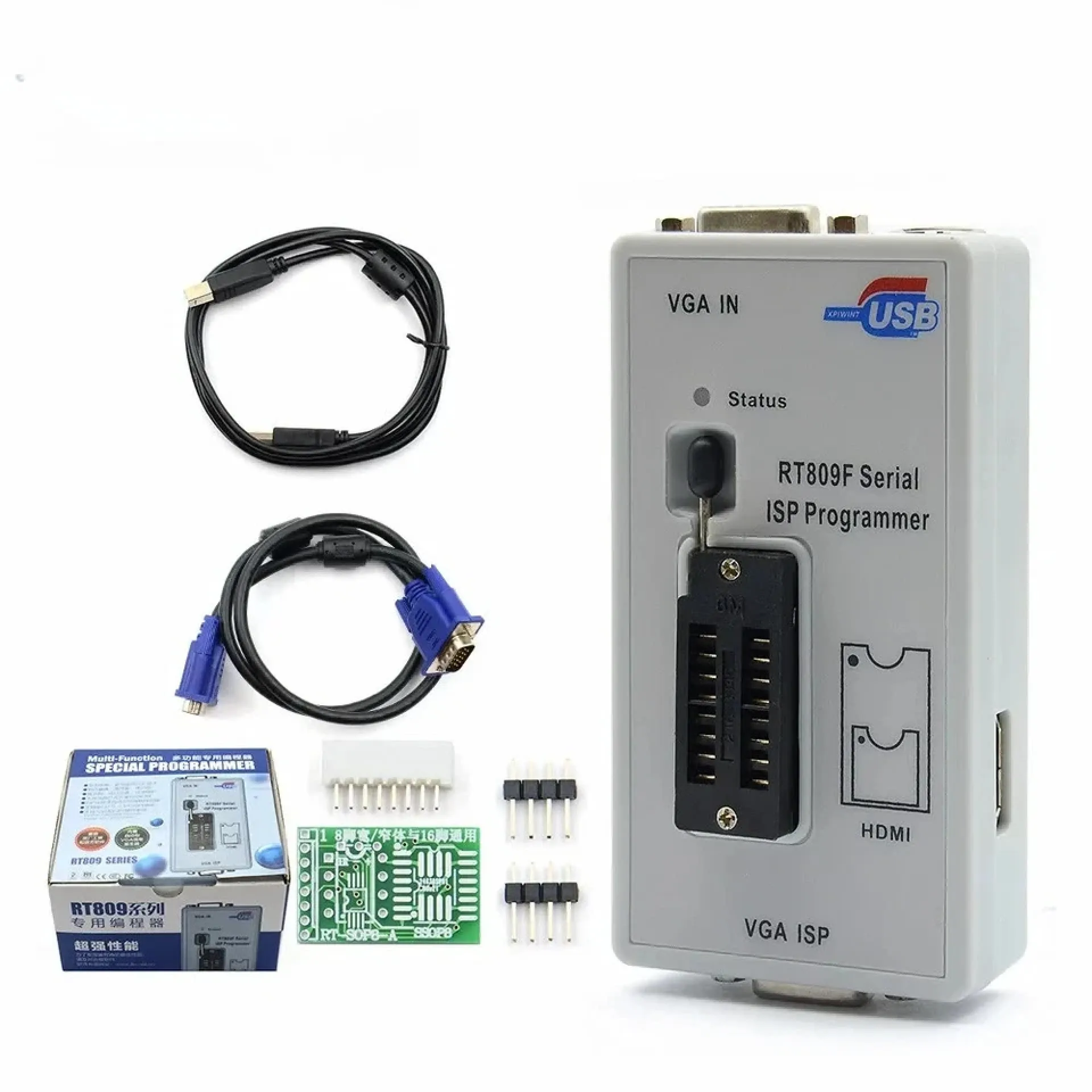

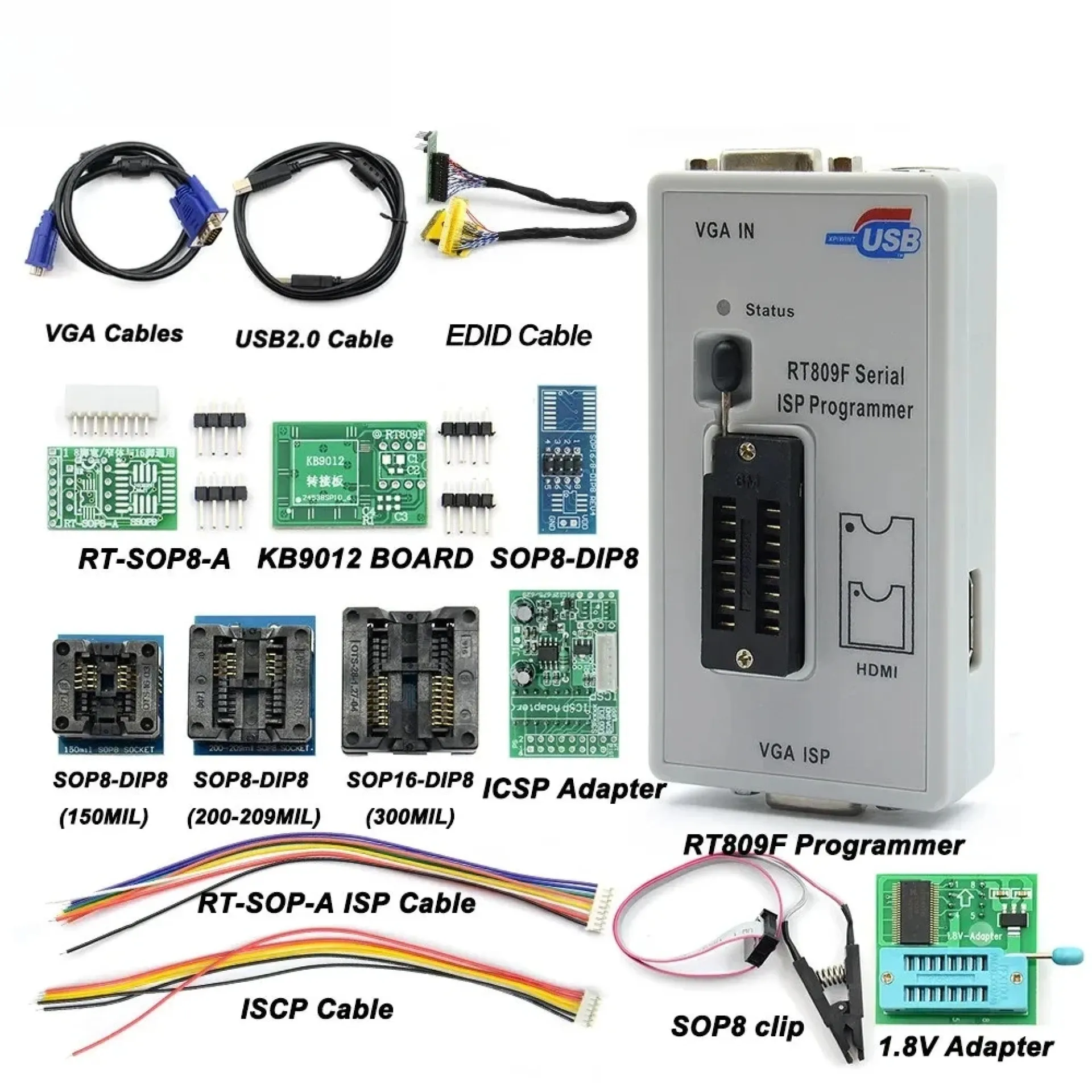

Original RT809F Universal BIOS, EEPROM & Flash Programmer

The Original RT809F Universal Programmer is a professional ISP (In-System Programming) tool built for reading, writing, and repairing a wide range of memory and BIOS chips found in computers, laptops, LCD panels, routers, and home appliances. Connecting through a high-speed USB2.0 port, it works with Windows XP, Vista, 7, 8, and 10, and installs with its own driver package for straightforward setup on repair workstations.

At its core, the RT809F is designed around broad chip coverage rather than a narrow specialty. It reads and writes the 24, 25, 93, and 95 series serial EEPROM and SPI Flash chips commonly found on motherboards and peripherals, along with 26, 27, 28, 29, 30, 39, 49, and 50 series NOR Flash and PROM devices. For NAND Flash, it supports parameter auto-identification and offline reading on TSOP48 and BGA footprint chips, which speeds up chip recovery work where the exact part number isn't known in advance. Beyond flash and EEPROM, the programmer extends to EEPROM, MCU, EC chips, SPI NOR and parallel NOR flash, SPI and parallel NAND, ONENAND, MCP, eMMC, and EMCP devices, covering most of the chip types a repair bench encounters.

eMMC work is handled both online and offline, with support for reading and writing the BOOT, USER, RPMB, and GPP areas individually, which matters for anyone doing detailed eMMC data recovery rather than a straightforward full-chip dump. The programmer's I2C serial port ISP function is compatible with most LCD chip schemes, letting technicians check chip information and read or write NOR, NAND, and eMMC chips directly on the board. It also handles laptop EC (embedded controller) chips from the IT8, KB90, NPCE, and NEC16 series, both online and offline, which is useful for keyboard controller and power management repairs.

Speed and reliability matter on a busy repair bench, and the RT809F's high-speed USB interface uses a WHQL-certified driver, with read and write speeds reaching up to 25MB/s. The device also supports free software upgrades and uses a universal switch socket design intended to lower long-term costs by reducing how often separate adapters are needed.

A few additional capabilities round out its usefulness: it reads and programs DDR1, DDR2, and DDR3 SPD memory, including special part numbers like 34C02, without needing to desolder the chip; it supports laptop password and battery chips such as 24RF08, 6480AR, BR9080, and 9016; and it can read and write LCD monitor, TV, and laptop screen EDID data online, which is a common fix for display detection issues. Between its wide chip support, offline NAND and eMMC handling, and EC chip capability, the RT809F is built to be a single, versatile tool for BIOS, EEPROM, and flash memory repair work rather than a narrow single-purpose device.

Features

• Broad chip support across EEPROM, SPI/parallel NOR flash, SPI/parallel NAND, eMMC, EMCP, MCU, and EC chips

• TSOP48 and BGA NAND Flash parameter auto-identification with offline reading

• eMMC online/offline recognition with BOOT, USER, RPMB, and GPP area read/write

• I2C serial port ISP for on-board LCD chip reading, writing, and inspection

• Laptop EC chip support for IT8, KB90, NPCE, and NEC16 series controllers

• High-speed USB2.0 connection with WHQL-certified driver, up to 25MB/s

• DDR1/DDR2/DDR3 SPD memory reading and writing without desoldering

• LCD monitor, TV, and laptop screen EDID data read/write online

• Free software upgrades and universal switch socket design

Specifications

• Connection: USB2.0 high-speed

• Operating System Support: Windows XP, Vista, 7, 8, 10

• Supported EEPROM/Flash Series: 24, 25, 93, 95 (serial), 26, 27, 28, 29, 30, 39, 49, 50 (NOR/PROM)

• NAND Flash Support: TSOP48 and BGA footprint, auto-identification, offline reading

• Additional Chip Support: MCU, EC chip, SPI NOR/parallel NOR flash, SPI/parallel NAND, ONENAND, MCP, eMMC, EMCP

• eMMC Access: Online and offline, BOOT/USER/RPMB/GPP area read/write

• EC Chip Support: IT8, KB90, NPCE, NEC16 series

• Read/Write Speed: Up to 25MB/s

• Memory Module Support: DDR1/DDR2/DDR3 SPD

Applications

• BIOS chip reading, writing, and recovery on motherboards

• Laptop EC (embedded controller) chip repair

• eMMC data recovery and area-specific read/write operations

• LCD monitor and TV EDID data repair

• Laptop screen EDID and display detection fixes

• Router and home appliance firmware chip recovery

• DDR SPD memory chip programming

• Laptop password and battery chip data recovery

• General NAND, NOR, and EEPROM flash memory repair
