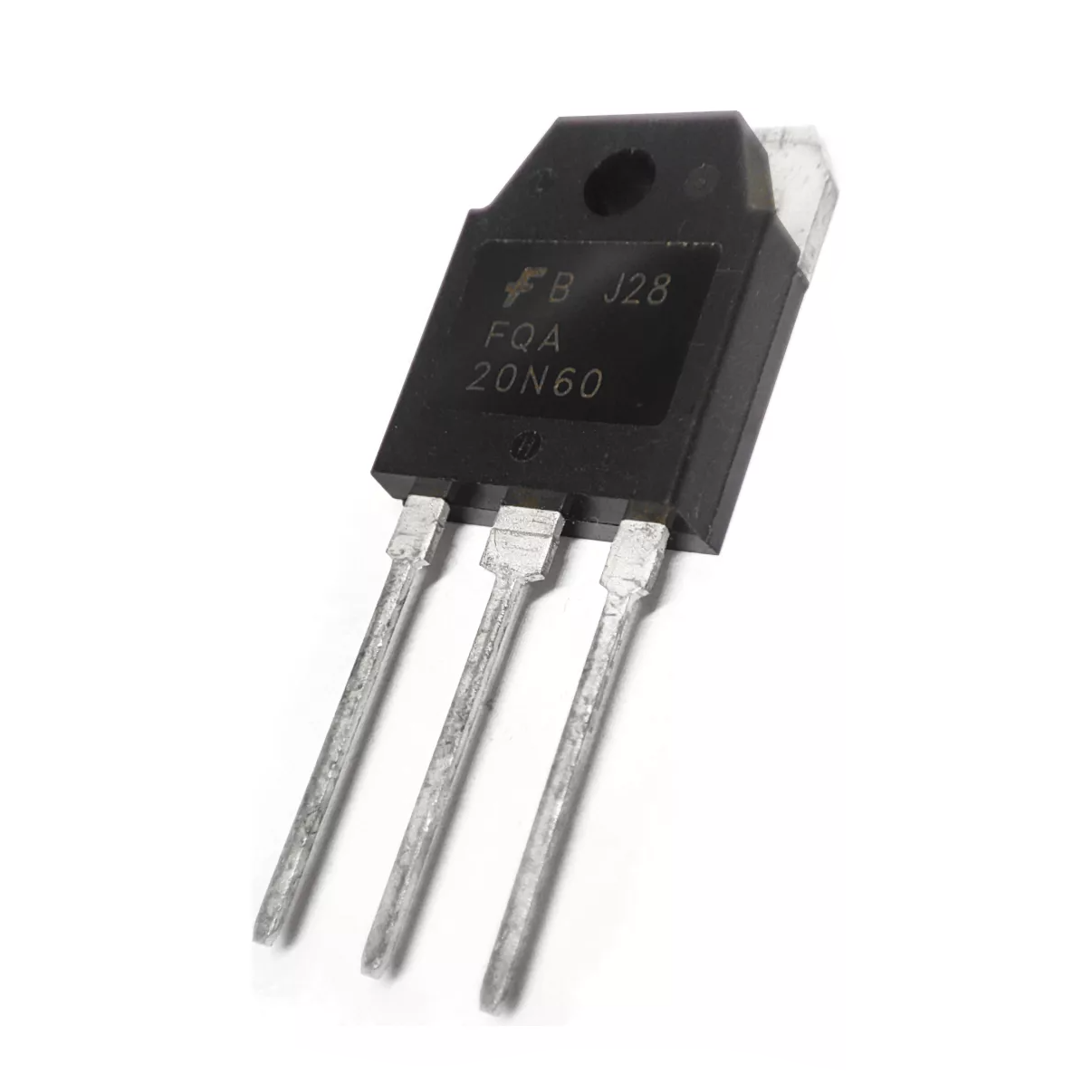

FQA20N60 N-Channel MOSFET Transistor 600V, 20A TO-3PN

The FQPF20N60 CN-Channel MOSFET is a high-voltage, high-performance power transistor designed for efficient switching and power management applications. With a voltage rating of 600V and a continuous current capacity of 20A, this MOSFET is ideal for use in power supplies, inverters, motor control circuits, and other high-power electronic systems.

Built using advanced MOSFET technology, the FQPF20N60 offers low on-resistance, fast switching speed, and excellent thermal stability. These characteristics help reduce power losses and improve overall system efficiency. Its N-Channel configuration ensures better conductivity and performance in switching applications, making it a preferred choice for engineers and electronics professionals.

The device comes in a durable TO-220 package, which provides efficient heat dissipation and allows for easy mounting on heat sinks. This ensures reliable operation even under high load and temperature conditions. The three-pin configuration (Gate, Drain, Source) is standard and easy to integrate into various circuit designs.

This MOSFET is widely used in SMPS (Switched Mode Power Supplies), LED drivers, DC-DC converters, and industrial automation systems. It is also suitable for DIY electronics projects and repair work, offering consistent performance and long operational life.

Whether you're designing a new power circuit or replacing a faulty component, the FQPF20N60 MOSFET delivers the reliability, efficiency, and durability required for modern electronic applications.

Features:

• High voltage rating of 600V

• Continuous current capacity up to 20A

• Low on-resistance for reduced power loss

• Fast switching speed for high efficiency

• N-Channel MOSFET for better performance

• Excellent thermal stability

• TO-220 package for effective heat dissipation

• Easy integration with standard pin configuration

Specifications:

• Model: FQPF20N60

• Type: N-Channel MOSFET

• Drain-Source Voltage (Vds): 600V

• Continuous Drain Current (Id): 20A

• Package: TO-220

• Number of Pins: 3 (Gate, Drain, Source)

• Switching Speed: Fast

• Mounting Type: Through-hole

• Operating Temperature: Industrial grade range

Applications:

• Switched Mode Power Supplies (SMPS)

• DC-DC converters

• Motor control circuits

• LED drivers and lighting systems

• Power inverters

• Industrial automation equipment

• DIY electronics and repair projects
